The Patrol range of commercial quality RIBs are designed to work both excellently as a long distance family cruiser or a hardcore work boat. Built to withstand the toughest of conditions.

The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions.

The range offers something for almost every requirement, from Sailing club support to Police and Rescue applications.

The Patrol boats carry large loads and plane quickly and easily with little horse-power. For charter boat and commercial operators, the modular set-up option means that we can build a layout that suits your needs. These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.

STANDARD FEATURES

  • ORCA® Hypalon or PVC tube
  • Bow Cushion
  • Welded seams (PVC)
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Integrated transom supports
  • Self-draining deck
  • Steering wheel
  • Integrated under-deck fuel tank
  • Lifting points and towing eyes
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Highfield dry bag
  • Foot pump, oars, repair kit
  • Carbon dash
  • Electrical pack for console
  • Electircal pack for boat
  • Transom ladder
  • Bow cushion

OPTIONAL EQUIPMENT

  • Console & seat options
  • Roll Bar with ladder
  • T-Top
  • Suspension seat with shock
  • Dive rack
  • Deck wash

Overall Length 6.17 m 20' 3"
Internal Length 4.49 m 14' 9"
Overall Width 2.58 m 8' 6"
Internal Width 1.32 m 4' 4"
Dead Rise 26°
Tube Diameter 54 cm 21"
Number of Air Chambers 6
Maximum Load 1580 kg 3483 lb
Maximum People 14
Boat Only Weight* 752 kg 1658 lb
Maximum Power 150 hp
Engine Shaft XL
Fuel Tank 140 l 36.9 gal
Design Category C

*Includes console, bolster, seat and rollbar

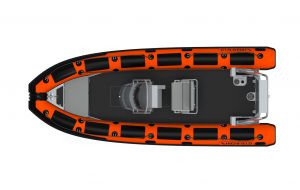

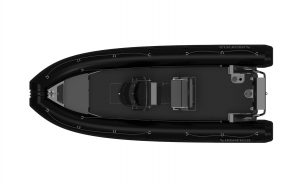

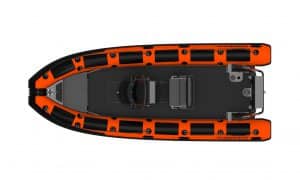

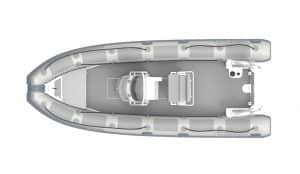

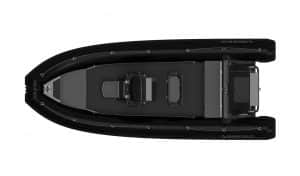

5 Colour Schemes (Jockey Seating)

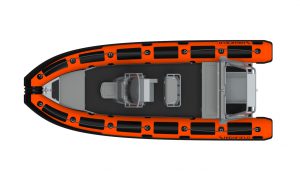

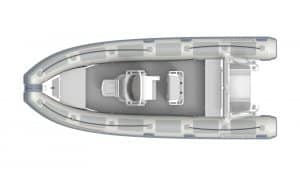

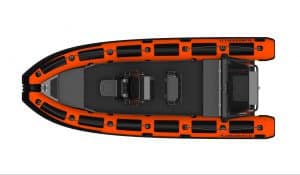

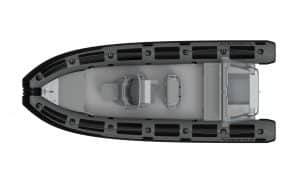

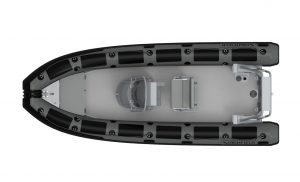

5 Colour Schemes (Flip-up Bolster)
